Adjustable Door Hinge Installation Jig Kit

Create clean, accurate hinge mortises and install door hardware with greater precision. This adjustable door hinge jig kit combines a durable aluminum alloy mortising template with the essential bits and accessories needed for door hinge installation.

Designed for carpenters, contractors, remodelers, and DIY projects, the adjustable template helps maintain consistent hinge positioning while reducing measuring and marking time.

Key Features:

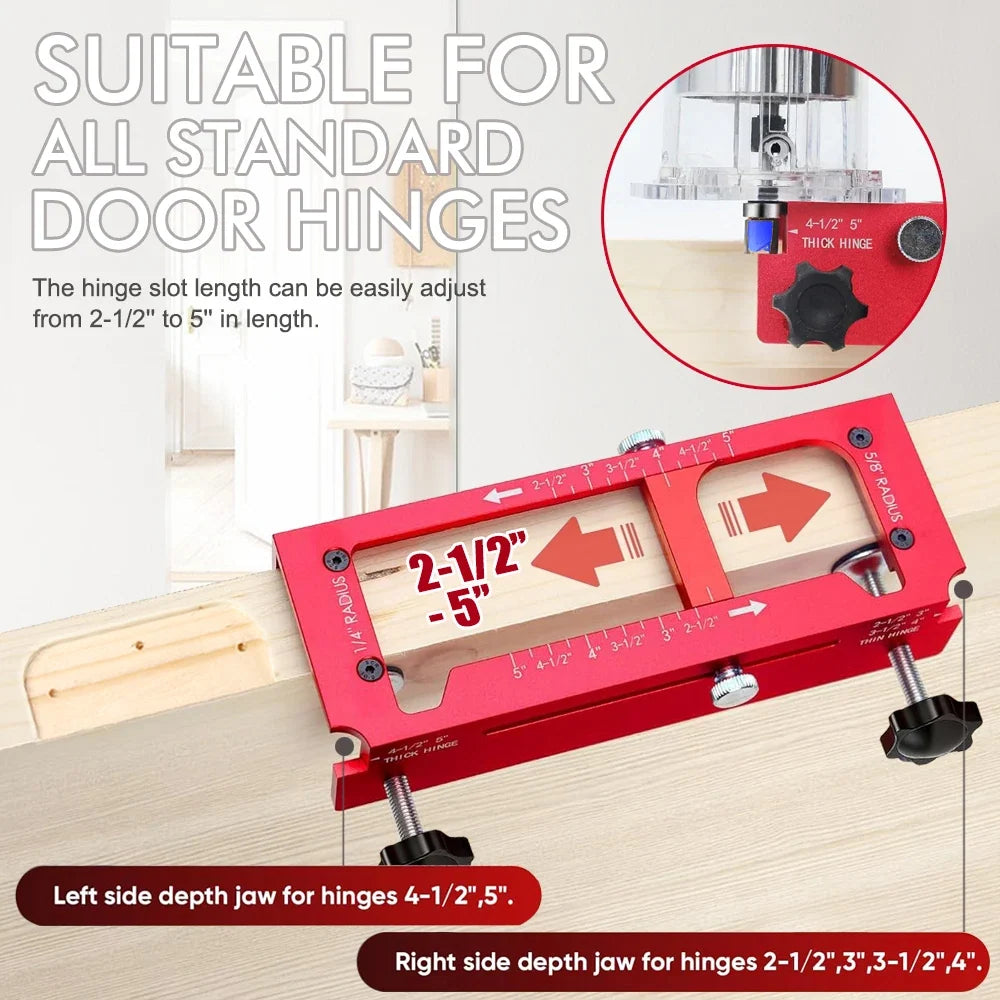

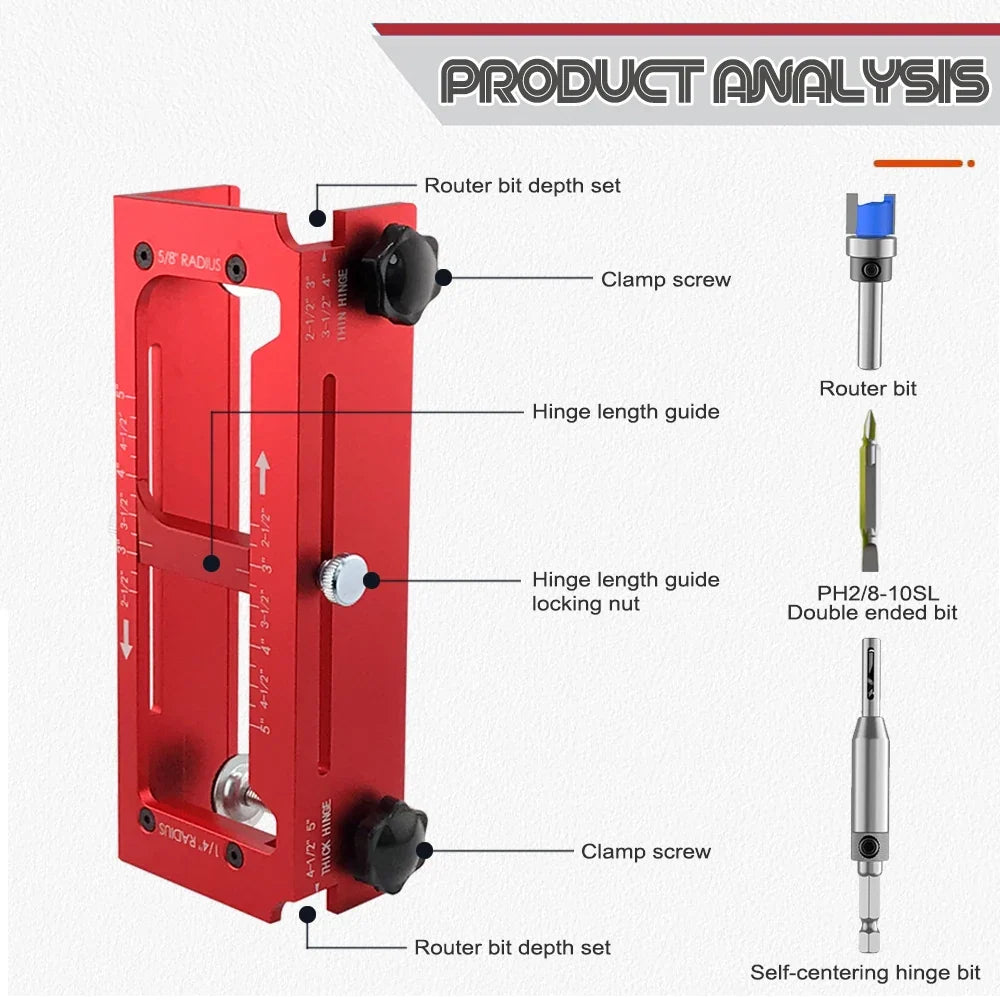

• Adjustable Hinge Template – Easily adjusts for different hinge sizes and positions

• Aluminum Alloy Construction – Strong, rigid design for accurate routing

• Adjustable Radius – Supports 1/4" and 5/8" radius configurations

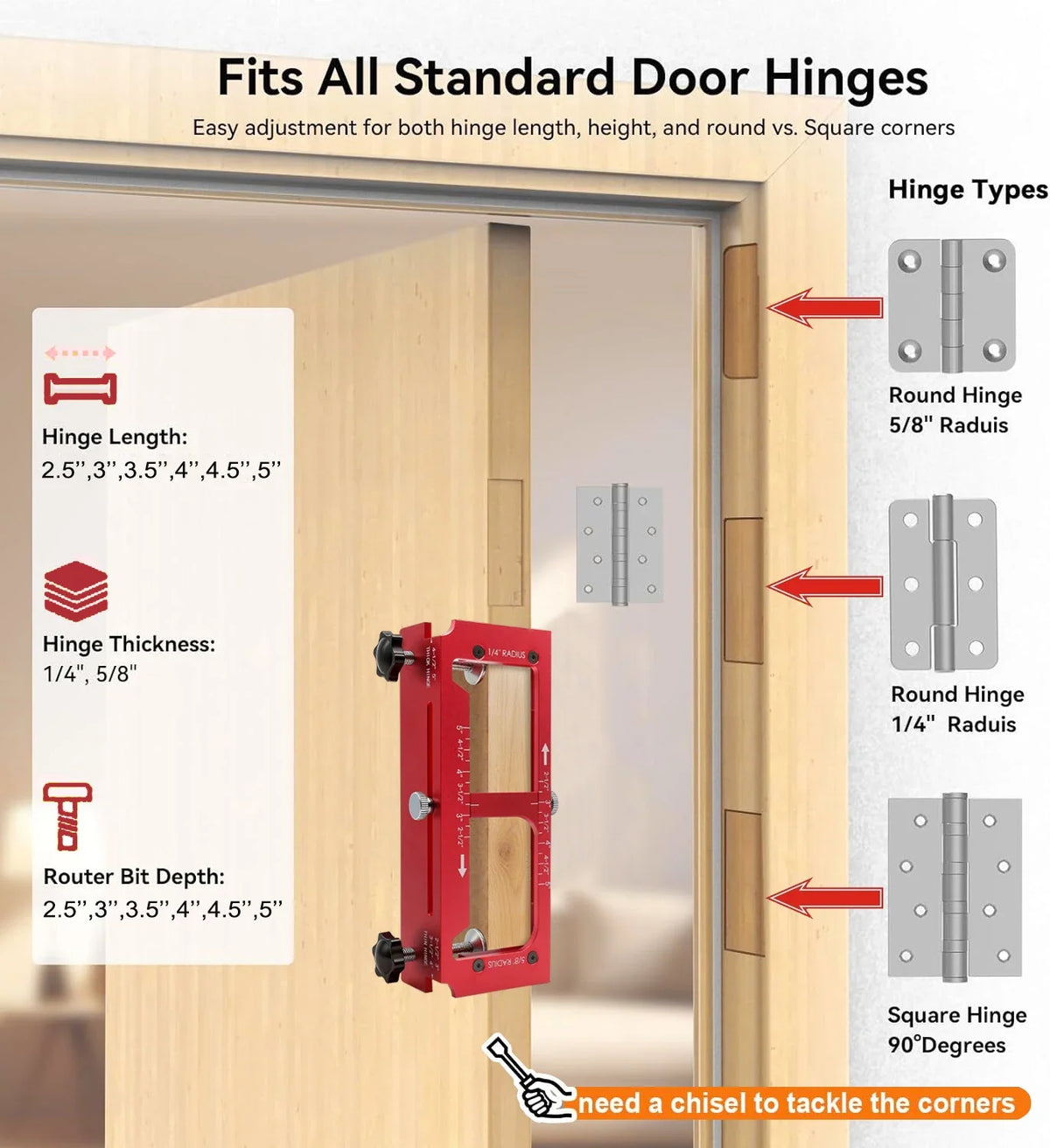

• Multiple Hinge Sizes – Adjustable for common hinge sizes from approximately 2-1/2" to 5"

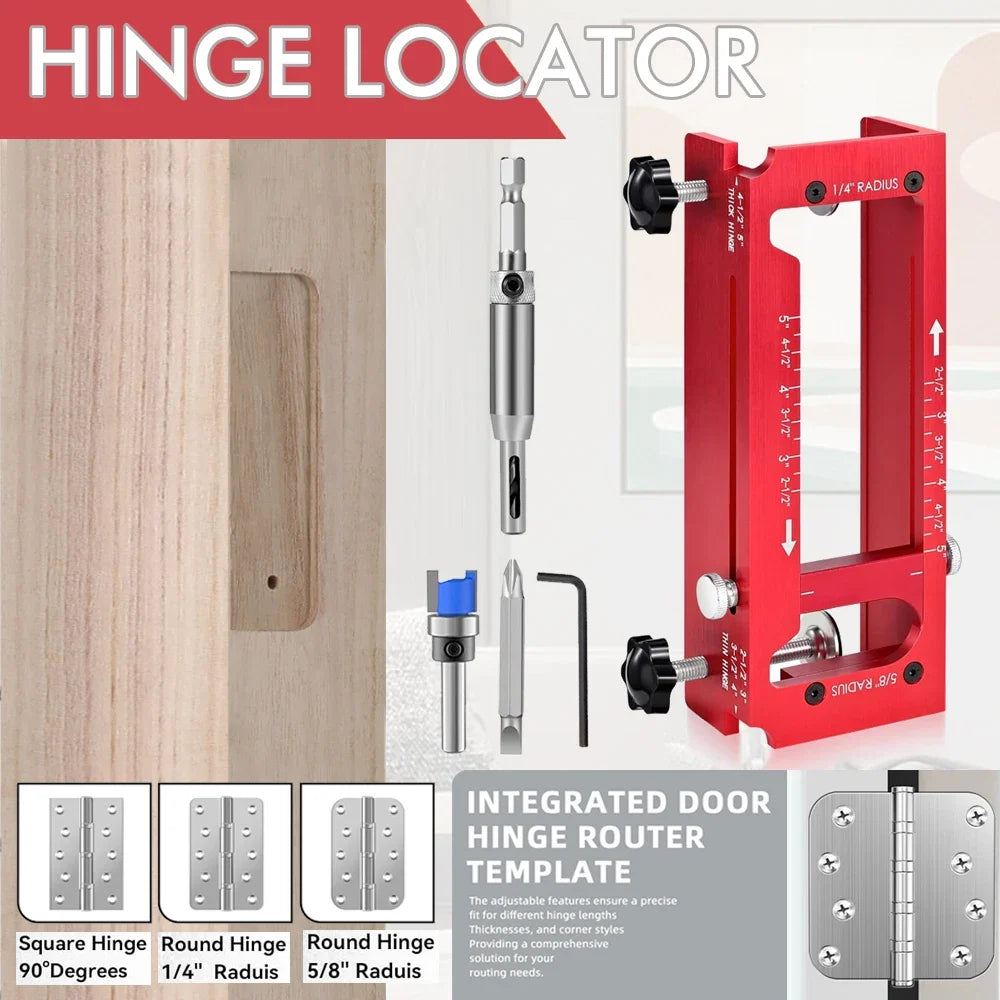

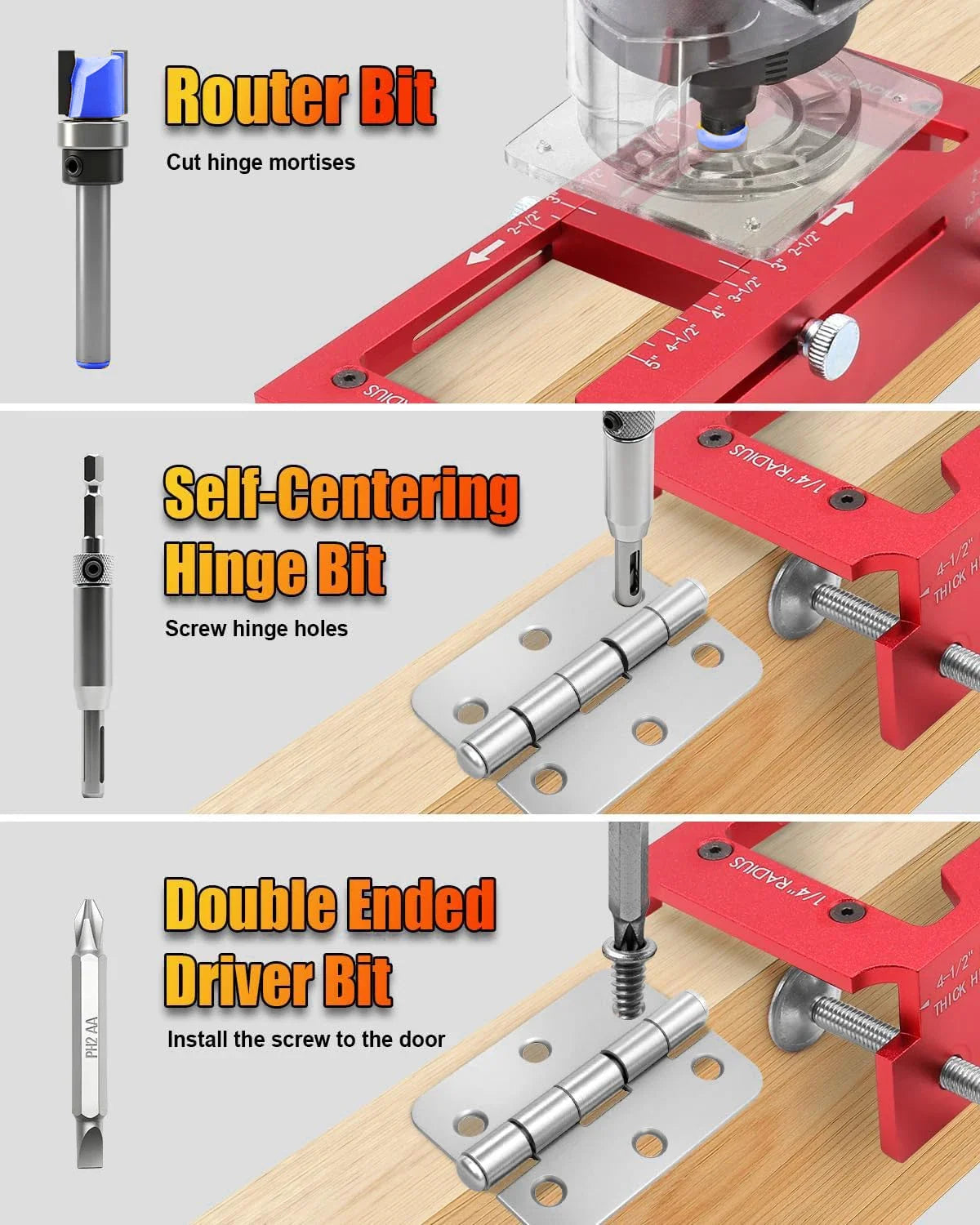

• Router Compatible – Includes a router bit for creating clean hinge mortises

• Self-Centering Hinge Bit – Helps accurately center screw holes

• Complete Installation Set – Includes the jig and essential installation accessories

• Reusable Design – Ideal for installing multiple doors and hinges

Door Hinge Jig Dimensions

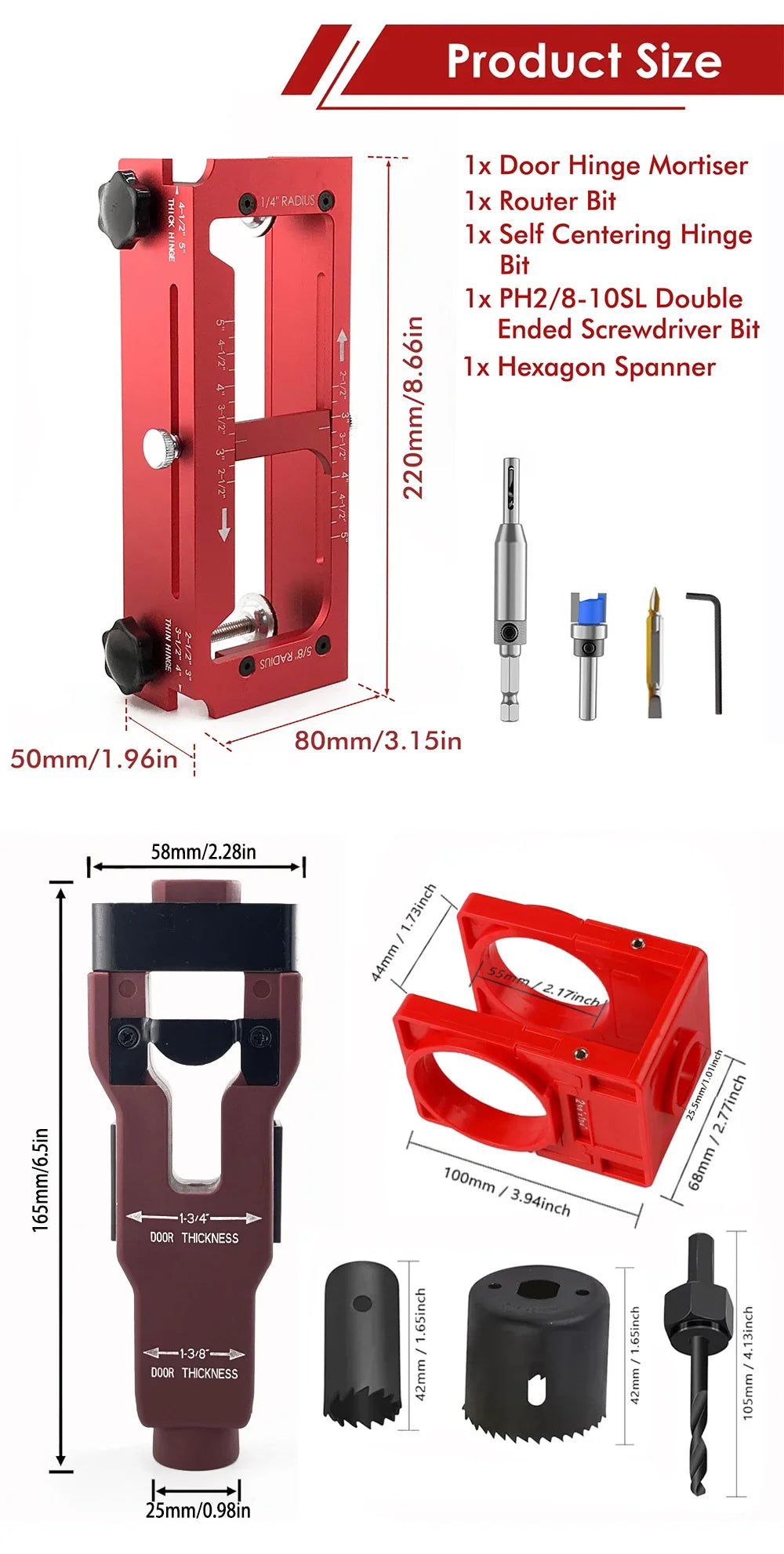

• Overall Length: 220 mm / 8.66"

• Width: 80 mm / 3.15"

• Depth: 50 mm / 1.96"

• Adjustable Hinge Length: Approx. 2-1/2"–5"

• Radius Options: 1/4" & 5/8"

Included Accessories

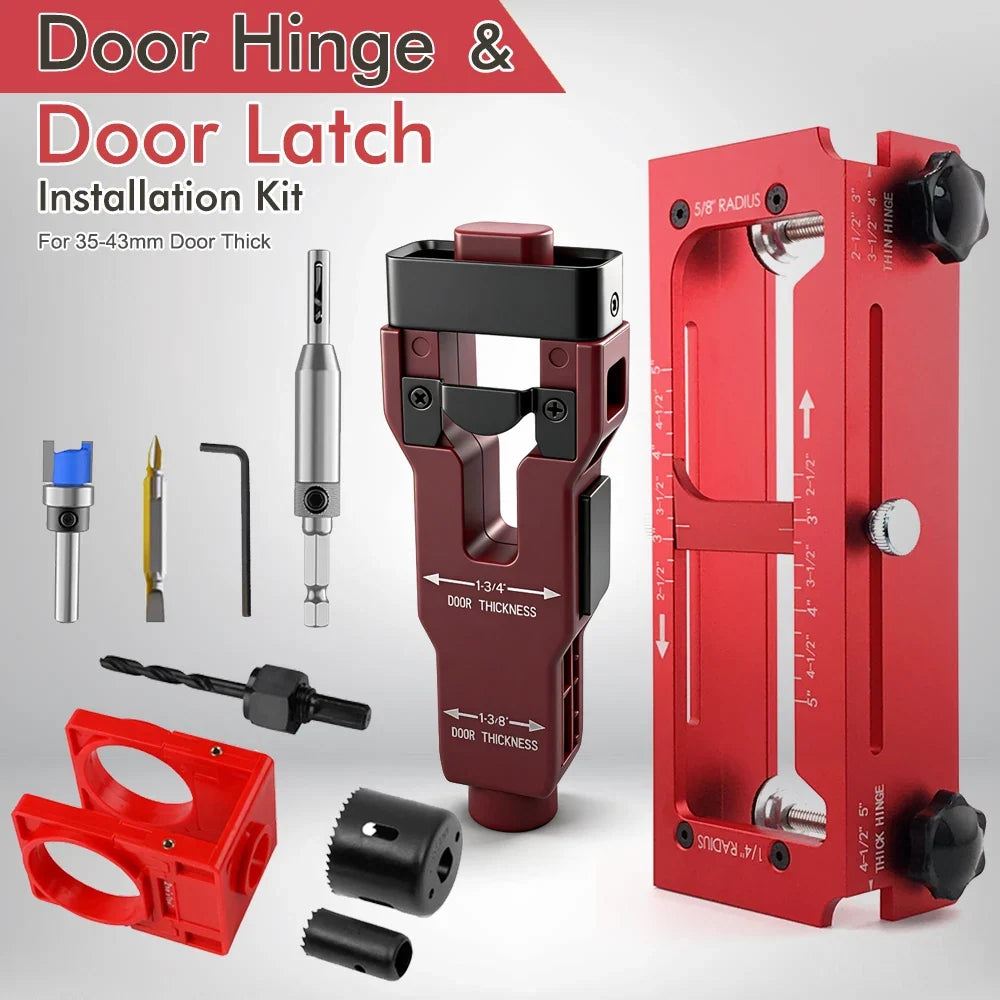

• 1 × Adjustable Door Hinge Mortising Jig

• 1 × Router Bit

• 1 × Self-Centering Hinge Bit

• 1 × PH2 / 8-10SL Double-Ended Screwdriver Bit

• 1 × Hex Key

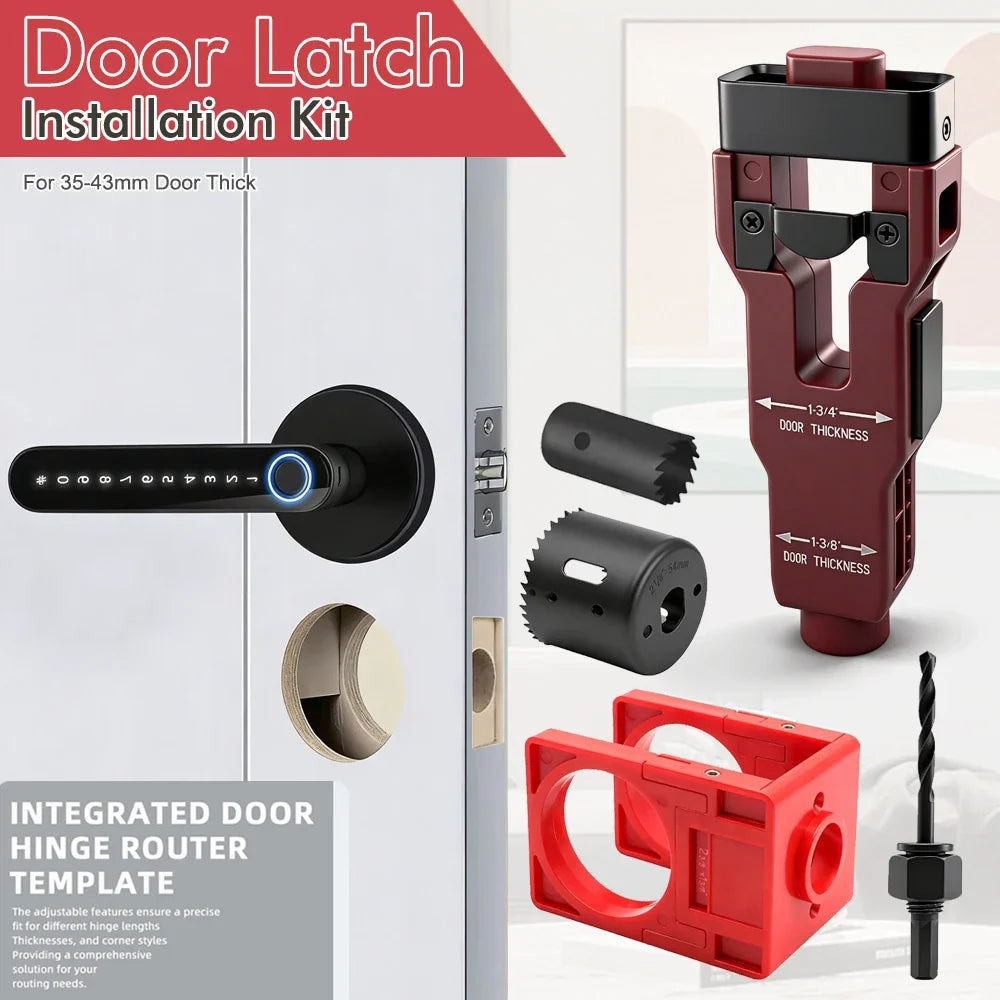

Additional Door Installation Tools

The complete kit also includes tools for preparing door lock and latch openings.

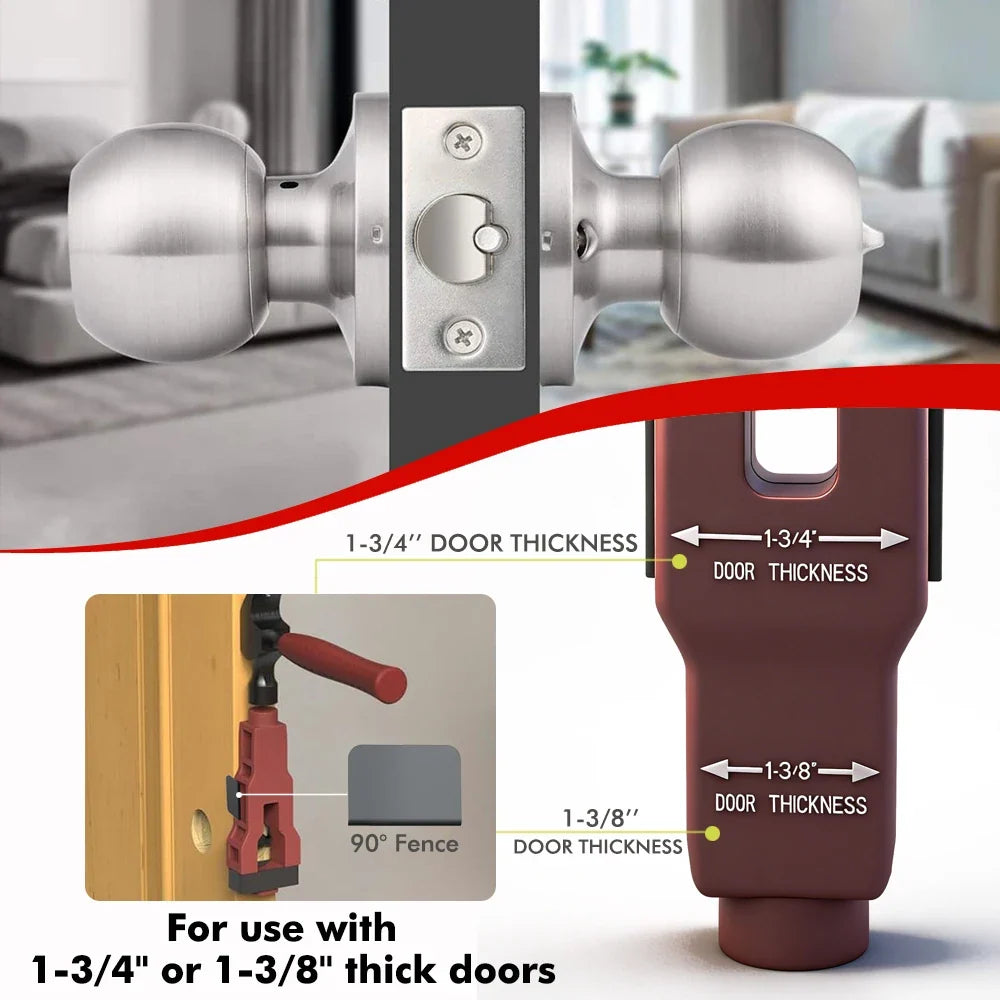

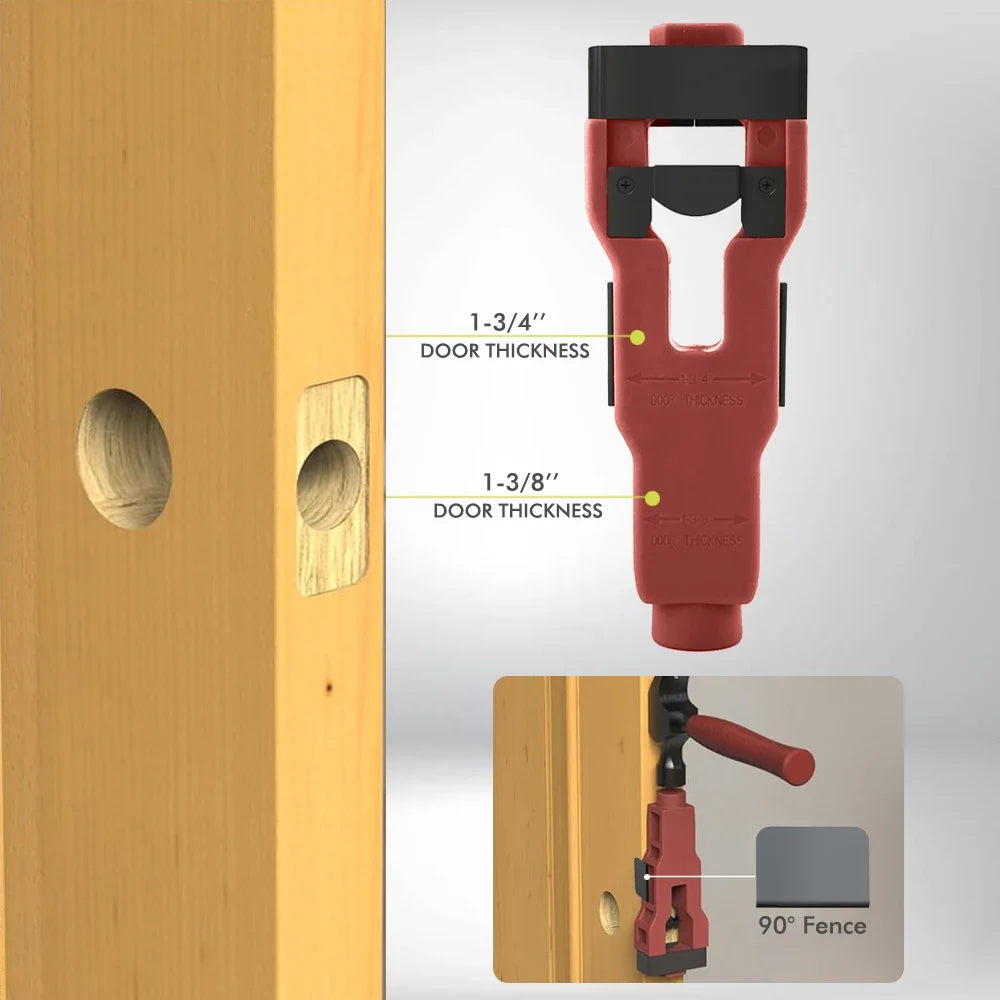

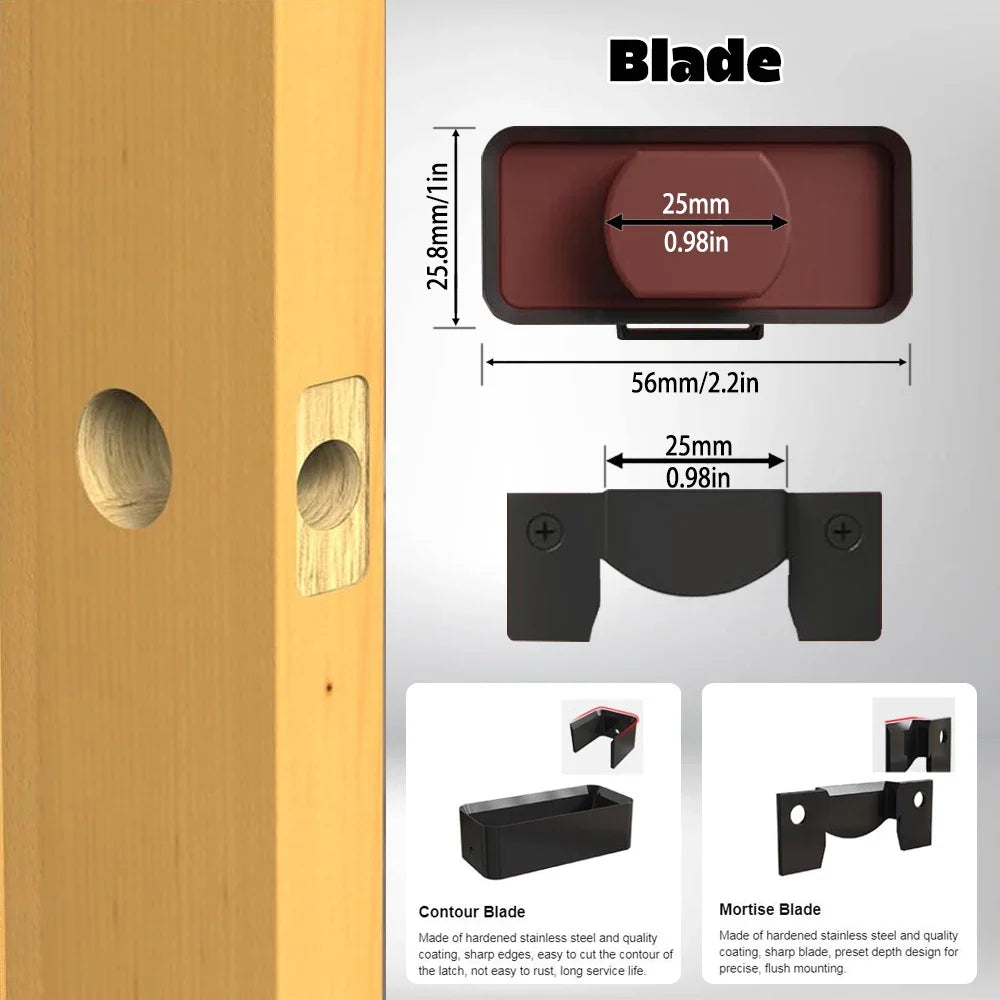

Door Latch Installation Tool

• Length: 165 mm / 6.5"

• Width: 58 mm / 2.28"

• Bottom Width: 25 mm / 0.98"

• Compatible Door Thicknesses: 1-3/8" and 1-3/4"

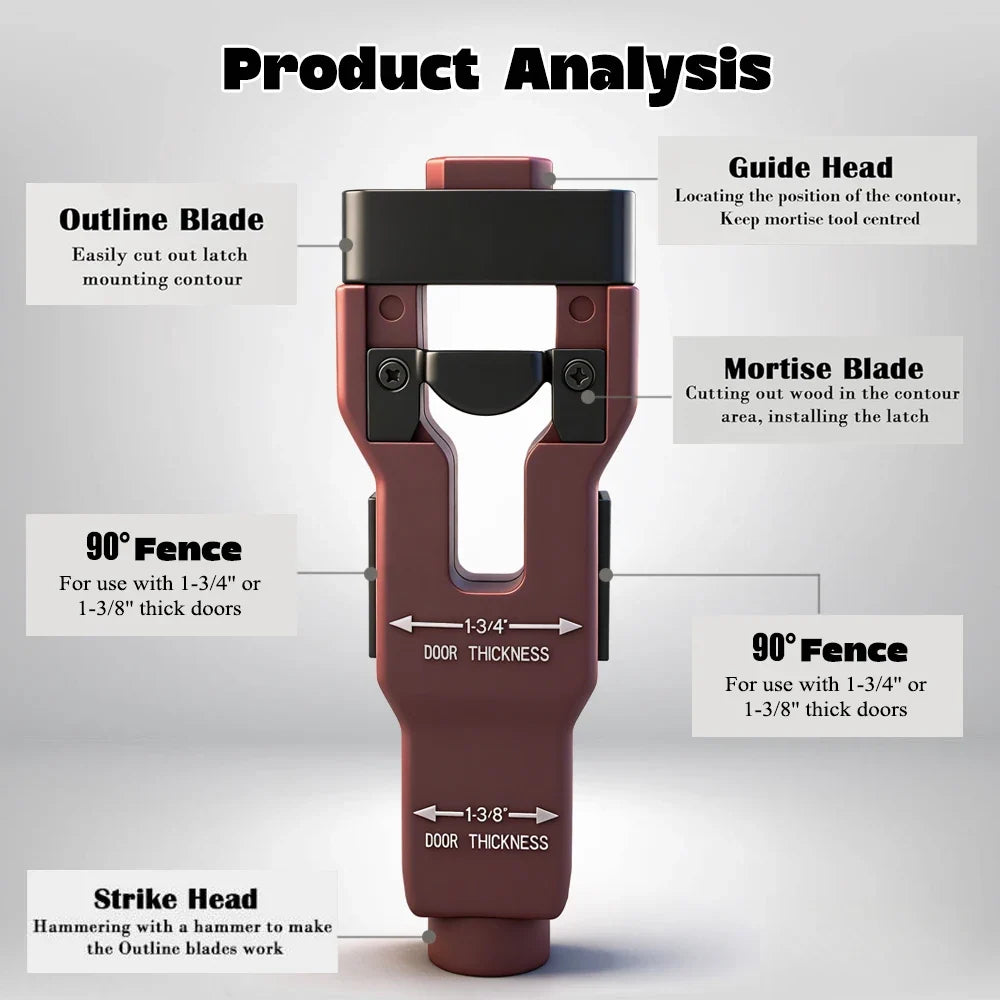

• Built-in scoring and chiseling system

Door Lock Drilling Guide

• Width: 100 mm / 3.94"

• Height: 68 mm / 2.71"

• Approx. Depth: 44 mm / 1.73"

• Main Opening: Approx. 55 mm / 2.17"

Hole Saw & Drill Components

• Large Hole Saw: Approx. 42 mm / 1.65" long

• Small Hole Saw: Approx. 42 mm / 1.65" long

• Arbor & Pilot Drill Length: 105 mm / 4.13"

Ideal For

• Door hinge installation

• Hinge mortising

• Door lock installation

• Door latch installation

• New door installation

• Door replacement and renovation

• Professional woodworking and DIY projects

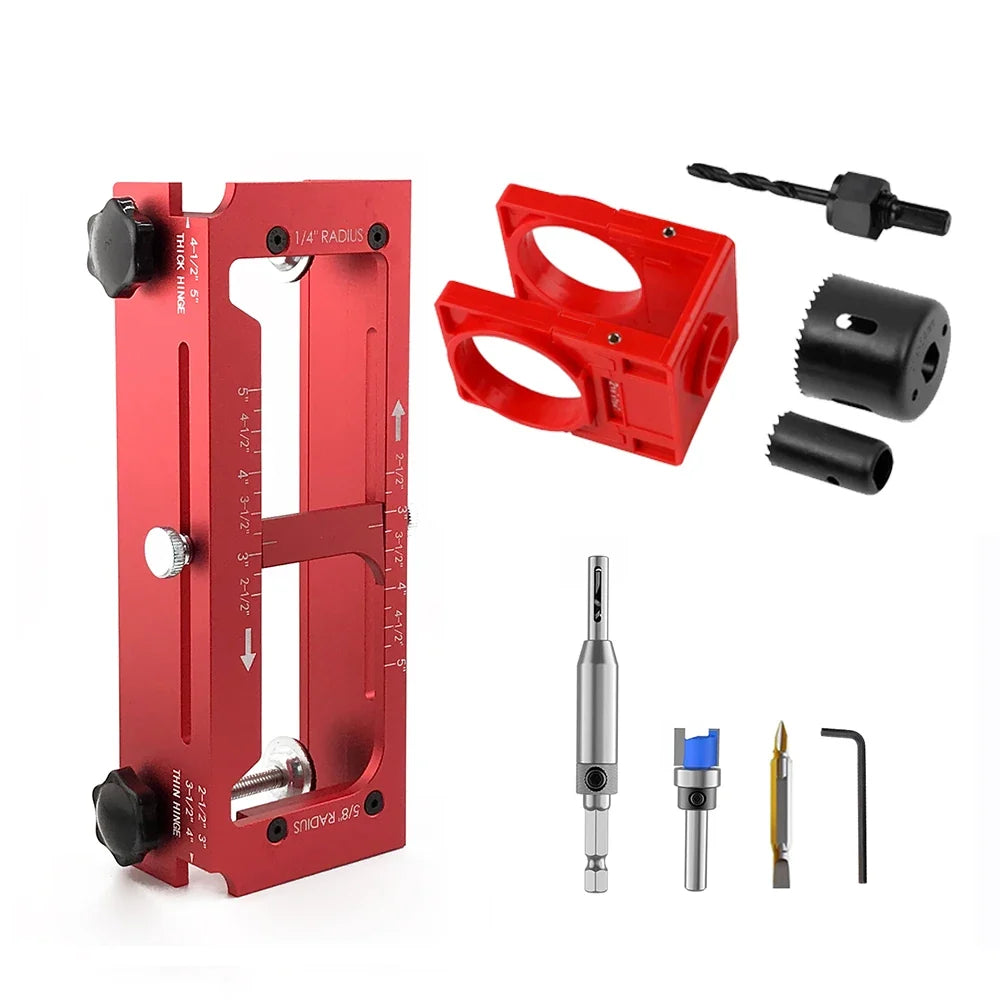

Package Includes:
1 × Adjustable Door Hinge Installation Jig
1 × Router Bit
1 × Self-Centering Hinge Bit
1 × Double-Ended Screwdriver Bit
1 × Hex Key
1 × Door Latch Installation Tool
1 × Door Lock Drilling Guide
2 × Hole Saws
1 × Arbor with Pilot Drill

Note: Router and power drill are not included. Always verify hinge, lock, latch, and door dimensions before cutting or drilling.
